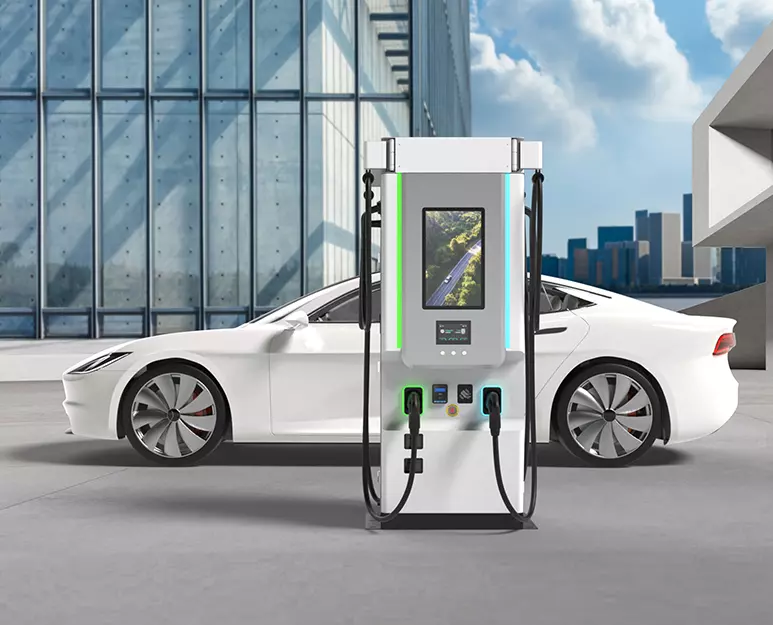

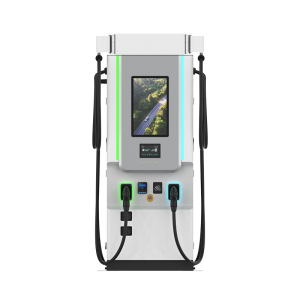

480kW Standalone DC Fast Charger

Dynamic Charging with Dual Screen. Generate Faster ROI

Features

Boost Mode Charge
● Elevated current mode
● Delivering up to 480kW

Customizable Screen Layouts
● Front & rear 21.5” display for Media & advisement, 7” touch display for operation

Tailor-made Charging System
● Options to select different cooling systems for 4 guns
● Maximum 2 liquid- and 2 air-cooled system

Smart Cable Management System
● Rotating shaft allows outward extension by 300mm
● Top hanging cable design reduces the gun weight

Download

Spotlights

Modular system ensures scalability at busy locations such as commercial buildings, shopping centers, outdoor parking, gas station, and fleets.

Scalable for Heavy-Duty Charging

The most powerful high power charging station. Delivering up to 480 kW of power and a full charge in about 15 minutes.

High Power Charging Solution

With the 21.5” media screen, you could sell advertising space on the media display to local businesses, brands, or other advertisers who want to reach EV drivers and charging station users.

A Sound Investment with Advertisement

Specification

DQ Series｜CE
DQ Series｜CE

Mechanical

Dimension (W×D×H)

800 x 1050 x 2100 mm

Weight

Net: 985kg with 4 charging connectors
Gross: 1160kg with 4 charging connectors

Cable Length

5m standard and 7m optional

AC Input

Input Voltage

380~415Vac (+/-10%)

Input Current Rating

•440A @240kW
•514A @280kW
•587A @320kW
•660A @360kW
•734A @400kW
•807A @440kW
•880A @480kW

Max. Input Power

•260kVA @240kW •303kVA @280kW
•346kVA @320kW
•388kVA @360kW
•433kVA @400kW
•476kVA @440kW
•520kVA @480kW

Connection/ Power Grid System

3P+ N+ PE (Wye configuration) , TN/TT

Power Factor

>0.99

Efficiency

>95%

DC Output

Output Voltage

DC 150 ~ 1000Vdc (CCS2)
DC 150 ~ 750Vdc (GB)

Simultaneous output

The power module is divided into 4 groups

Current

**Liquid-cooled CCS2
500A@150 ~ 960Vdc
(up to 480kW)
** Air‐cooled CCS2
300A@150 ~ 1000Vdc
**GB
250A@150 ~ 750Vdc

Compliance

EMC/EMI

IEC-61851-21

Safety

IEC 61851-1 ; IEC-61851-23

Protection

Input

OVP, OCP, UVP, RCD, SPD

Output

OCP, SCP, OVP, OTP, IMD
DQ Series｜UL
DQ Series｜UL

Mechanical

Dimension (W×D×H)

32 × 42 × 83 inch

Weight

Net: 985kg with 4 charging
connectors
Gross: 1160kg with 4 charging
connectors

Cable Length

Standard:15 ft

AC Input

Input Voltage

480Vac (+/-10%)

Input Current Rating

•316A @240kW
•365A @280kW
•418A @320kW
•470A @360kW
•522A @400kW
•574A @440kW
•627A @480kW

Max. Input Power

•260kVA @240kW
•303kVA @280kW
•346kVA @320kW
•388kVA @360kW
•433kVA @400kW
•476kVA @440kW
•520kVA @480kW

Power Factor

>0.99, +/-1%@Full-load output
power, input nominal voltage and
frequency of 50-60Hz

Efficiency

>95%

DC Output

Output Voltage

DC 150 ~ 1000Vdc (CCS1, NACS)

Simultaneous output

The power module is divided into 4
groups

Current

**Liquid-cooled CCS1
500A@150 ~ 960Vdc(up to 480kW)
** Air-cooled CCS1 & NACS
350A@150 ~ 1000Vdc

Compliance

EMC/EMI

UL2202

Safety

UL2202,UL2231

Protection

Input

OVP, OCP, UVP, RCD, SPD

Output

OCP, SCP, OVP, OTP, IMD

Application

Shopping Center / Hospitality

Download

ZEROVA_Specifications sheet_EN_DQ480kW

User Manual

Management Solutions

Users can search for charger locations, make charging reservations, and monitor charging status through the mobile app. It also allows EV charger updates remotely which facilitates the long-term maintenance and management of the charger.

※ The Management solution is a complementary service for charging stations and is not sold separately.
※ The detailed content and specifics of this service may vary by region and branch. Please contact the local sales team for more information.
