Home > Charging Solution > DC Charger > 30kW Wall Mount DC Charger
DW series

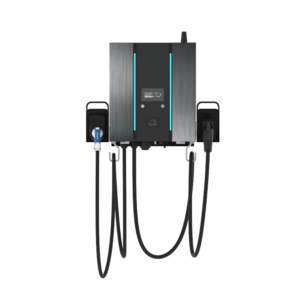

30kW Wall Mount DC Charger

DC

Features

Compatibility

●  Supports CCS, CHAdeMO, and NACS standards ˙Flexible network or standalone operation

Efficiency and Power

●  Efficiency > 94%, PF > 0.99 (APFC)
●  7-inch LCD, RFID, and user-friendly interface

Protection and Certification

●  Robust OVP, OCP, OTP, UVP, RCD, SPD
●  CE, UL2202, UL2231, FCC standards

Design & Customization

●  7-inch LCD Screen
●  Customization available

Specification

  • CE , DW 30 Series|CE/CB (Europe)
    CE , DW 30 Series|CE/CB (Europe)
    • Mechanical
      Dimension (W×D×H)

      610 x 230 x 690mm ± 1%

      Weight

      Single plug : ≤ 80kg ±1%
      Dual plugs : ≤ 88kg±1%

      Cable Length

      4m

    • AC Input
      Input Rating

      3Φ_380~415Vac (±15%)

      Input Current

      3P+N+PE (Wye configuration), TN/TT

      Max. Input Current

      3Φ47A

      Frequency

      50Hz/60Hz

      Power Factor

      >0.99

      Efficiency

      >94%, at Optimize V/I Point

    • DC Output
      Output Voltage Range

      CE: CHAdeMO : 150~500Vdc
      CCS2 : 150~950Vdc

      Max. Output Current

      CHAdeMO : 60A@500Vdc
      CCS1 : 60A@500Vdc
      CCS2 : 80A@375Vdc

      Max. Output Power

      DC 30kW

      Voltage Accuracy

      ±2%

      Current Accuracy

      ±2%

    • Regulation
      Certification

      IEC 61851-1
      IEC 61851-23
      IEC 61851-21-2

      Charging Interface

      CHAdeMO
      DIN 70121
      ISO15118

  • UL , DW 30 Series|NRTL – cETLus (USA/Canada )
    UL , DW 30 Series|NRTL – cETLus (USA/Canada )
    • Mechanical
      Dimension (W×D×H)

      610 x 230 x 690mm ± 1%

      Weight

      Single plug : ≤ 80kg ±1%
      Dual plugs : ≤ 88kg±1%

      Cable Length

      4m

    • AC Input
      Input Rating

      3Φ_480Vac (+10%, -15%)

      Input Current

      3P+N+PE (Wye configuration), TN/TT

      Max. Input Current

      3Φ40A

      Frequency

      50Hz/60Hz

      Power Factor

      >0.99

      Efficiency

      >94%, at Optimize V/I Point

    • DC Output
      Output Voltage Range

      UL : CHAdeMO : 150~500Vdc
      CCS1 : 150~950Vdc

      Max. Output Current

      CHAdeMO : 60A@500Vdc
      CCS1 : 60A@500Vdc
      CCS2 : 80A@375Vdc

      Max. Output Power

      DC 30kW

      Voltage Accuracy

      ±2%

      Current Accuracy

      ±2%

    • Regulation
      Certification

      UL2202, UL2231
      FCC Part 15 subpart B
      ANSI C63.4 ;
      ICES-003

      Charging Interface

      CHAdeMO
      DIN 70121
      ISO15118

Management Solutions

Users can search for charger locations, make charging reservations, and monitor charging status through the mobile app. It also allows EV charger updates remotely which facilitates the long-term maintenance and management of the charger.

※ The Management solution is a complementary service for charging stations and is not sold separately.
