DR series

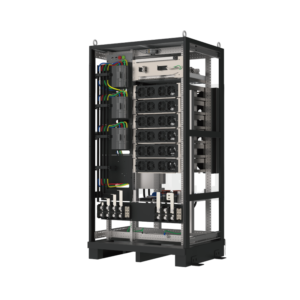

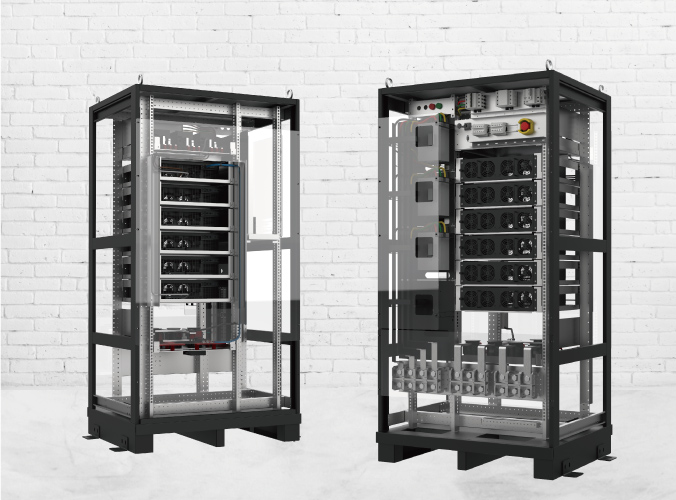

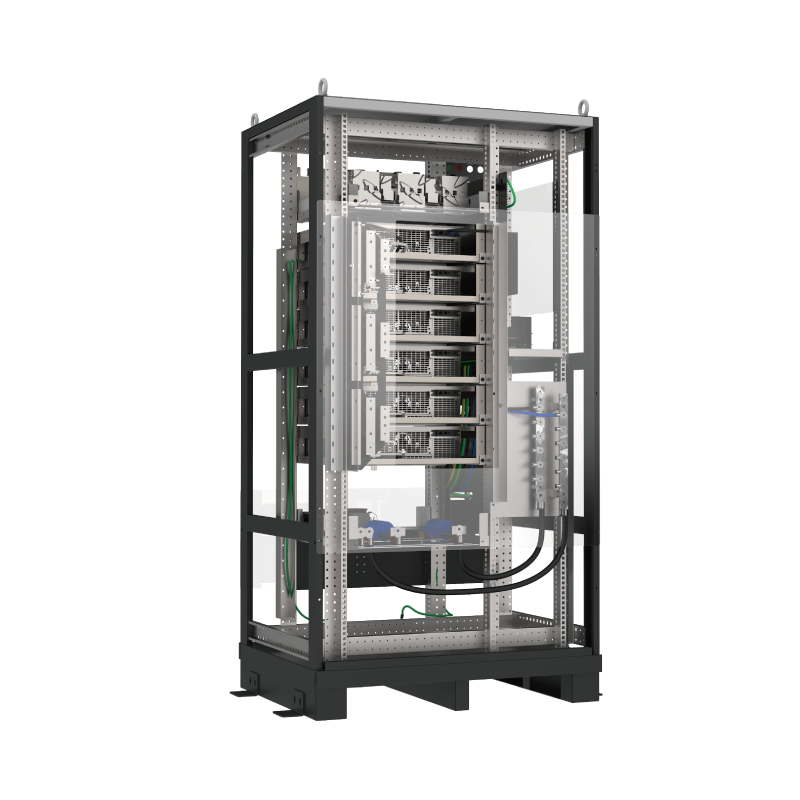

180kW Power Rack DC Charger

DC

Features

●  Multi-standard: CCS, CHAdeMO and GB/T ; simultaneous 2 DC Charging
●  Up to 500A per output
●  Network or standalone operation
●  Smart charging and load balancing
●  Efficiency > 94%
●  PF > 0.99(APFC)
●  Custom available

Specification

  • DR series 180kW Power Rack|CE
    DR series 180kW Power Rack|CE
    • Mechanical
      Dimension (W×D×H)

      960 x 780 x 1865 mm ±1%

      Weight

      ≤430kg ±3%

    • AC Input
      Input Rating

      3Φ_380~415 Vac (±15%)

      Input Current

      3P+N+PE (Wye configuration), TN/TT

      Max. Input Current

      345A

      Frequency

      50Hz/60Hz

      Power Factor

      >0.99

      Efficiency

      >94%, at Optimize V/I Point

    • DC Output
      Output Voltage Range

      CCS :150~950Vdc
      GBT : 150~750Vdc
      CHAdeMO : 150~500Vdc

      Max. Output Current

      300A

      Max. Output Power

      DC 180kW

      Voltage Accuracy

      ±2%

      Current Accuracy

      ±2%

    • Regulation
      Certification

      IEC 61851-1
      IEC 61851-23
      IEC 61851-21-2

      Charging Interface

      CHAdeMO V1.2
      DIN 70121
      ISO15118
      GB/T 27930

  • DR series 180kW Power Rack|UL
    DR series 180kW Power Rack|UL
    • Mechanical
      Dimension (W×D×H)

      960 x 780 x 1865 mm ±1%

      Weight

      ≤430kg ±3%

    • AC Input
      Input Rating

      3Φ_480Vac (+10%, -15%)

      Input Current

      3P+N+PE (Wye configuration), TN/TT

      Max. Input Current

      274A

      Frequency

      50Hz/60Hz

      Power Factor

      >0.99

      Efficiency

      >94%, at Optimize V/I Point

    • DC Output
      Output Voltage Range

      CCS : 150~950Vdc
      GBT : 150~750Vdc
      CHAdeMO : 150~500Vdc

      Max. Output Current

      300A

      Max. Output Power

      DC 180 kW

      Voltage Accuracy

      ±2%

      Current Accuracy

      ±2%

    • Regulation
      Certification

      UL2202 , UL2231

      Charging Interface

      CHAdeMO V1.2
      DIN 70121
      ISO15118
      GB/T 27930

Management Solutions

Users can search for charger locations, make charging reservations, and monitor charging status through the mobile app. It also allows EV charger updates remotely which facilitates the long-term maintenance and management of the charger.

※ The Management solution is a complementary service for charging stations and is not sold separately.
