DO series

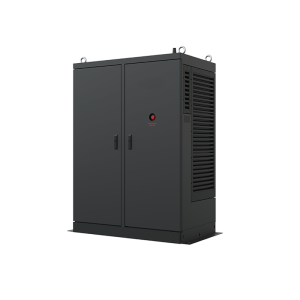

360kW DC Power Cabinet

DC

Features

High Performance

●  Up to 360KW/500A output,
●  Up to 4 simultaneous DC charging outputs

Smart & Secure

●  User authentication
●  Smart charging and load balancing support

Versatility in Operation

●  Supports Pantograph charging
●  Network or standalone operation

Smart & Secure

●  User authentication
●  Smart charging and load balancing support

Customizable Solutions

●  Custom cable management

Specification

  • DO Series 360kW|CE/ CNS
    DO Series 360kW|CE/ CNS
    • Mechanical
      Dimension (W×D×H)

      1400 x 800 x 1900 mm

      Weight

      905 kg

    • AC Input
      Input Voltage

      3Φ380 ~ 415Vac (+/-15%) 50/60HZ

      Input Current Rating

      Max:690 A

      Max. Input Power

      391 kVA

      Wiring connection/ Power Grid System

      3P+ N+ PE, TN/TT

      Power Factor

      >0.99

      THDI

      < 5%

    • DC Output
      Output Voltage

      150~950 V

      Max. Power

      360 kW

      Simultaneously output mode

      Simultaneously output mode

    • Compliance
      EMC/EMI

      IEC.61851-21-2
      CNS 15511-21-2

      Safety

      IEC.61851-1.
      IEC.61851-23
      CNS 15511-1
      CNS 15511-23

    • Protection
      Input

      OVP, UVP, OCP, OPP, OTP, SPD, RCD

      Output

      OCP, SCP, OVP, LVP, OTP, IMD

  • DO Series 360kW|UL
    DO Series 360kW|UL
    • Mechanical
      Dimension (W×D×H)

      55.12 x 31.50 x 74.80 inch

      Weight

      1995 lbs

    • AC Input
      Input Voltage

      3Φ480Vac (+10%,-15%) 50/60HZ

      Input Current

      Nominal:466 A

      Max. Input Power

      391 kVA

      Wiring connection/ Power Grid System

      3P+ N+ PE, TN/TT

      Power Factor

      >0.99

      THDI

      < 5%

    • DC Output
      Output Voltage

      150~950V

      Max. Power

      DC 360 kW

      Simultaneously output mode

      Dynamic distribution

    • Compliance
      EMC/EMI

      FCC Part 15 SubpartB
      ICES-003

      Safety

      UL 2202
      UL 2231

    • Protection
      Input

      OVP, UVP, OCP, OPP, OTP, SPD

      Output

      OCP, SCP, OVP, LVP, OTP, IMD

Application

Management Solutions

Users can search for charger locations, make charging reservations, and monitor charging status through the mobile app. It also allows EV charger updates remotely which facilitates the long-term maintenance and management of the charger.

※ The Management solution is a complementary service for charging stations and is not sold separately.
※ The detailed content and specifics of this service may vary by region and branch. Please contact the local sales team for more information.
