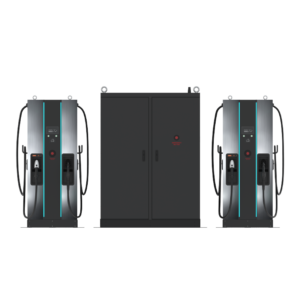

● Up to 360KW/ 500A per output with liquid-cooled connector
● Simultaneous 4 DC charging; multi-standard: CCS, CHAdeMO and GB/T
● Power cabinet supports Pantograph Charging
● Network or standalone operation
● User authentication
● Supports smart charging and load balancing
● Custom available
1400 x 800 x 1900mm ±1% (main cabinet)
700 x 550 x 1800mm ±1% (sub cabinet)
≤ 1200 kg ±3% (main cabinet)
≤ 300kg ±3% (sub cabinet)
4m
3Φ_380~415Vac (±15%)
3P+N+PE (Wye configuration), TN/TT
690A(CE)
50Hz/60Hz
>0.99
>94%, at Optimize V/I Point
CCS2:150~950Vdc
CHAdeMO:150~500Vdc
GBT:150~750Vdc
CCS2 Liquid Cooling plug : 500A@720V
CCS2 Nature Colling plug : 200A@950V, 250A or 300A@950V (Option)
CHAdeMO : 200A@500V
GBT 250A@750V GBT (Only CE)
DC 360 kW
±2%
±2%
IEC 61851-1
IEC 61851-23
IEC 61851-21-2
CHAdeMO V1.2
DIN 70121
ISO15118
GB/T 27930
1400 x 800 x 1900mm ±1% (main cabinet)
700 x 550 x 1800mm ±1% (sub cabinet)
≤ 1200 kg ±3% (main cabinet)
≤ 300kg ±3% (sub cabinet)
4m
3Φ_480Vac (+10%, -15%)
3P+N+PE (Wye configuration), TN/TT
549A(UL)
50Hz/60Hz
>0.99
>94%, at Optimize V/I Point
CCS1:150~950Vdc
CHAdeMO:150~500Vdc
CCS1 Liquid Cooling plug : 500A@720V
CCS1 Nature Colling plug : 200A@950V or 300A@950V (Option)
CHAdeMO : 200A@500V
DC 360 kW
±2%
±2%
UL2202
UL2231
EMI/EMC FCC CFR Title 47 Part 15
Subpart B: 2020
ANSI C63.4: 2014
ICES-003:2020 Issue 7
CHAdeMO V1.2
DIN 70121
ISO15118
GB/T 27930
Through the mobile app, users can search for charger locations, make charging reservations, and monitor charging status. It also allows EV charger updates remotely
Saving Energy , Charge The World
ZEROVA offers high-quality, economical fast chargers, customized EV charging solutions, and infrastructure consulting services for a variety of business sectors. Contact us now for details.
