DZ series

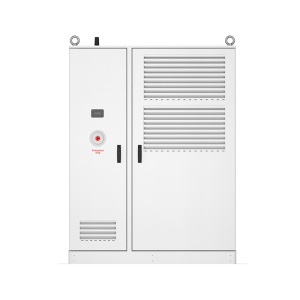

480kW/Megawatt Power Cabinet

DC

Features

High Capacity

●  Up to 6 simultaneous DC outputs
●  High power conversion efficiency

Versatile Deployment

●  Network or Standalone Operation
●  Scalable from 480kW to 3.8mW+

Intelligent Operation

●  Intelligent Power Sharing
●  Smart Charging and Load Balancing

Tailored Solutions

●  Customization Available
●  Suited for Diverse Industry Applications

Specification

  • DZ Series 480kW|CE
    DZ Series 480kW|CE
    • Mechanical
      Dimension (W×D×H)

      1500 x 800 x 1965 mm

      Weight

      1300 kg

    • AC Input
      Input Voltage

      3Φ380 ~ 415Vac (+/-15%) 50/60HZ

      Input Current Rating

      Max: 920 A

      Max. Input Power

      522 kVA

      Wiring connection/ Power Grid System

      3P+ N+ PE, TN/TT

      Power Factor

      >0.99,at full load

      Efficiency

      >96%

    • DC Output
      Output Voltage

      200 ~ 950 V

      Max Power

      480kW

    • Compliance
      EMC/EMI

      IEC.61851-21-2

      Safety

      IEC.61851-1.
      IEC.61851-23

    • Protection
      Input

      OVP, UVP, OCP, OPP, OTP, SPD, RCD

      Output

      OCP, SCP, OVP, LVP, OTP, IMD

  • DZ Series 480kW|UL
    DZ Series 480kW|UL
    • Mechanical
      Dimension (W×D×H)

      59.06 x 31.50x 77.36 inch

      Weight

      2866 lbs

    • AC Input
      Input Voltage

      3Φ480Vac (+10%,-15%) 50/60HZ

      Input Current Rating

      Nominal: 621 A

      Max. Input Power

      522 kVA

      Wiring connection/ Power Grid System

      3P+ N+ PE, TN/TT

      Power Factor

      >0.99,at full load

      Efficiency

      >96%

    • DC Output
      Output Voltage

      200 ~ 950 V

      Max Power

      480kW

    • Compliance
      EMC/EMI

      FCC Part 15 SubpartB
      ICES-003

      Safety

      UL 2202
      UL 2231

    • Protection
      Input

      OVP, UVP, OCP, OPP, OTP, SPD

      Output

      OCP, SCP, OVP, LVP, OTP, IMD

Application

Management Solutions

Users can search for charger locations, make charging reservations, and monitor charging status through the mobile app. It also allows EV charger updates remotely which facilitates the long-term maintenance and management of the charger.

※ The Management solution is a complementary service for charging stations and is not sold separately.
※ The detailed content and specifics of this service may vary by region and branch. Please contact the local sales team for more information.
