DD series

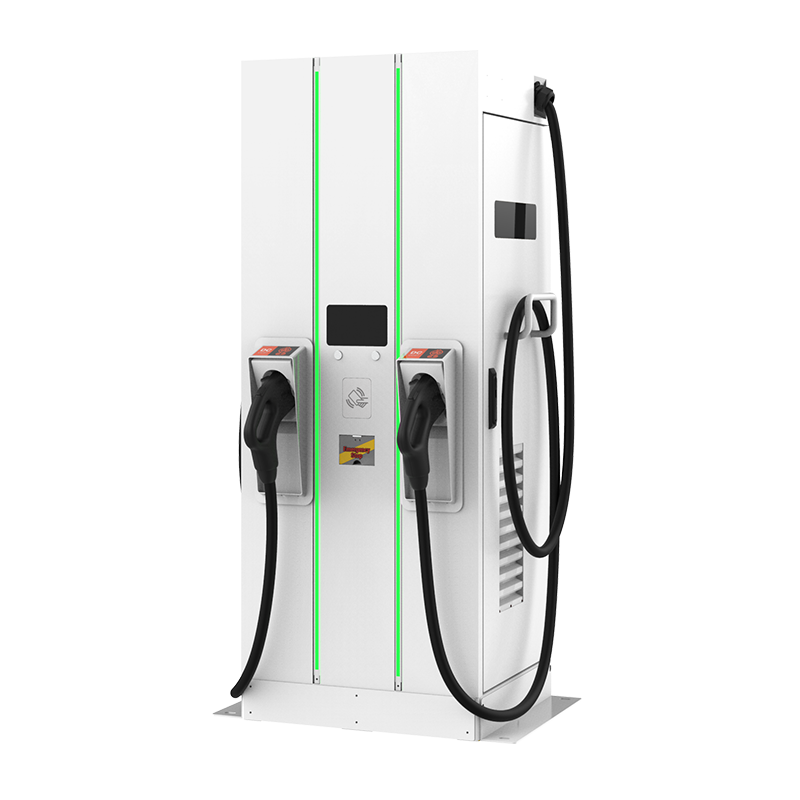

360kW Free Standing DC Charger

DC

Features

Power Dispenser

●  Supports Pantograph Charging
●  Enables network operation

Supports Multi-standard

●  CCS, CHAdeMO, and GB/T
●  Simultaneous dual DC charging

Smart Charging

●  Customization is available
●  Complies with ISO15118 (Plug & Charge)

Security and Authentication

●  Delivers 360KW/500A per output
●  User authentication

Specification

  • DD Series 360kW|CE/ CNS
    DD Series 360kW|CE/ CNS
    • Mechanical
      Dimension (W×D×H)

      700 x 550 x 1800 mm

      Weight

      355 kg

      Cable Length

      Liquid cooled: >4 m
      Air cooled: >4.5 m

    • AC Input
      Input Voltage

      1Φ220 VAC ~ 240Vac ,+/-15% ( 50/60 Hz)

      Input Current Rating

      Max :7.1 A

      Connection/ Power Grid System

      1P+ N+ PE , TN/TT

    • DC Output
      Output Voltage

      150 ~ 950 VDC

      Current

      CCS liquid cooled:500A
      CCS air cooled:250A/300A
      CHAdeMO:200A

    • Compliance
      EMC/EMI

      IEC.61851-21-2

      Safety

      IEC.61851-1.
      IEC.61851-23

    • Protection
      Input

      OVP, UVP, OCP, OPP, OTP, SPD, RCD

      Output

      OCP, SCP, OVP, LVP, OTP, IMD

  • DD Series 360kW|UL
    DD Series 360kW|UL
    • Mechanical
      Dimension (W×D×H)

      28 x 222 x 71 inch

      Weight

      782 lbs

      Cable Length

      Liquid cooled: >13 ft
      Air cooled: >15 ft

    • AC Input
      Input Voltage

      1Φ277Vac c +10%,-15% (50/60Hz)

      Input Current Rating

      Nominal:5.17

      Connection/ Power Grid System

      1P+ N+ PE , TN/TT

    • DC Output
      Output Voltage

      150 ~ 950 VDC

      Current

      CCS liquid cooled:500A
      CCS air cooled:300A
      CHAdeMO:200A

    • Compliance
      EMC/EMI

      FCC Part 15 SubpartB
      ICES-003

      Safety

      UL 2202
      UL 2231

    • Protection
      Input

      OVP, UVP, OCP, OPP, OTP, SPD

      Output

      OCP, SCP, OVP, LVP, OTP, IMD

Management Solutions

Users can search for charger locations, make charging reservations, and monitor charging status through the mobile app. It also allows EV charger updates remotely which facilitates the long-term maintenance and management of the charger.

※ The Management solution is a complementary service for charging stations and is not sold separately.
